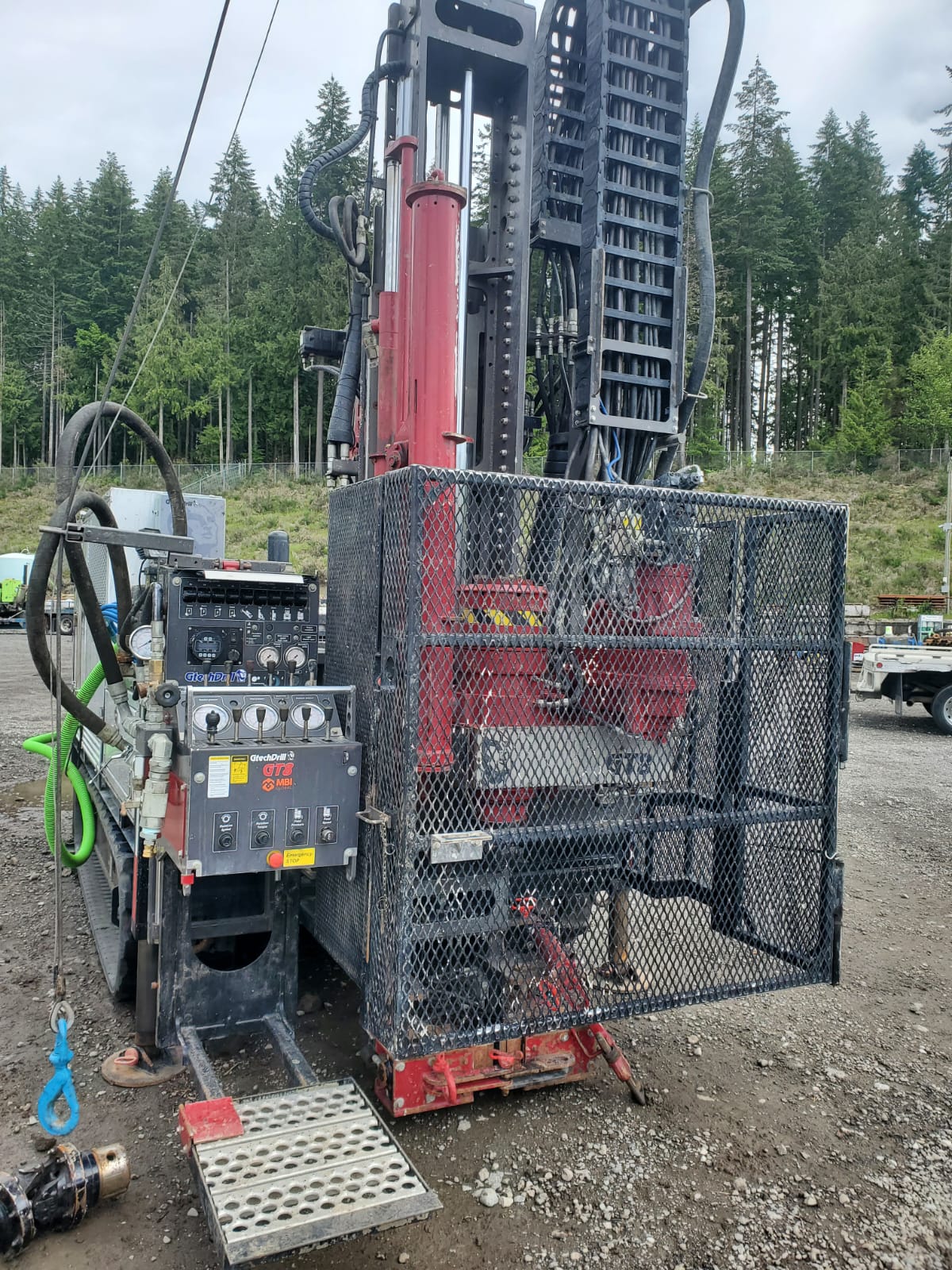

Boart Longyear Sonic Track Drill Rig

With innovative designs and patented technologies, the LS600 drills deeper, produces more accurate samples and serves more markets than any other Sonic rig to date. The LS600 features a pneumatic isolation system inside the head, preventing resonant energy from transmitting to the drill rig.  This directs the maximum amount of energy down the drill string to the face of the bit for improved penetration rates.  A turbo-charged 6.6 liter Caterpillar engine with 228 horsepower fuels the LS600’s Sonic head, allowing drillers to reach depths of up to 600 feet and has even drilled deeper in certain soil conditions.  The LS600 drills through and samples overburden and soft rock formations at or near 100% core recovery without the risk of refusal and without the use of fluids.  In addition to producing a relatively undisturbed sample, the LS600 drills with as little as one percent deviation to depth enabling the driller to pinpoint exact sampling locations.  You will get more information with fewer holes and that’s the power of Sonic with innovative designs and patented technologies.

The LS600 is ideal for several industries.

  • Mining
  • Environmental
  • Geotechnical
  • Infrastructure
  • Marine
Equipped With:
  • 4" & 6" core Barrels
  • SPT hammer
  • High shear mixer and moyno grout pump
  • Simple hydraulic design
  • Interlocked rotation barrier safety cage
  • Rubber tracks low ground pressure
  • Mounted with a welder/generator
  • Drill rod and casing management system
  • Triple hydraulic breakout wrenches
  • ROPS - Roll Over Protective Structure
  • Large FMC bean water/mud pump
  • Caterpillar CAT 6.6 Tier 3 compliant
  • Grease Piston Pre-load System
Capable Of:
  • 7" and 8" core barrels
  • Up to 12" borehole drilling size
  • Angel hole drilling
  • SPT testing
  • CPT cone penetration testing
  • DCPT testing
  • Vane testing
  • Shelby sampling
  • Vapour probes
  • Pumping wells and extraction wells
  • Monitoring wells and piezometer
  • Water wells
  • Multi port wells
  • Deep settlement gauges
  • Anchors
  • Electric piezometers
  • Slope inclinometers
  • Placer mine exploration
  • HQ coring
Technical Specs:
Maximum Drilling Depth: 182 m / 600 ft (depending on ground conditions has gone deeper)
Torque: 3,660 Nm / 2,700 ftlb
Pull Back: 67.5 kN / 15,175 lbf
Pull Down: 40.5 kN / 9,105 lbf

Height:
  • With Tower Up: 10.6 m / 34 ft 9 in
  • With Tower Down: 3.5 m / 11 ft 6 in

Length:
  • With Tower Unfolded Up: 9.6 m / 31 ft 4 in
  • With Tower Folded Down: 10.03 m / 32 ft 11 in
  • Length of Machine Body: 9.6 m / 31 ft 4 in

Width: 2.73 m / 8 ft 11.5 in
Weight: 17,700 kg / 39,000 lbs

Terra Sonic 150CC Sonic Drill Rig

We could not be more pleased to add this exceptional piece of equipment to our fleet. The TSi 150CC Compact Crawler Mounted Sonic Drill Rig delivers big sonic power in a compact footprint. Don’t be fooled by its small size, it comes with a 225 HP engine to power all driving, drilling and accessory hydraulic functions. It has a powerful TSi 150 HP series sonic head. The sonic head can drill between vertical and nearly horizontal. It comes with a 19.5ft long mast that can accommodate 10ft sections of tooling or 5ft. It can drill depths of 350ft+ and produce boreholes up to 12″ in diameter. The TSi can drill through virtually any lithology without refusal.

The TSi is the newest and most technologically advanced sonic drill rig available. With the largest sonic head and smallest footprint the TSi is the perfect choice for urban and off-road drilling projects.

The TSi 150CC is ideal for several industries:

. Mining
. Environmental
. Geotechnical
. Infrastructure
. Marine

Equipped With:
  • TSi 150 Series Sonic Head with 150 HP
  • SPT drop hammer mounted on rig
  • Mounted Coring Head
  • Mounted SPT Hammer
  • A rod breakout system
  • Wireless and wired remote control
  • Rubber tracks low ground pressure 6.7 psi
  • Mounted moyno grout pump
  • Bean mud/water pump
  • 300 gallon water tank
  • Triple jaw clamp
  • Advanced warning display screens for operator & equipment safety
  • Rotation barrier safety cage
  • Head tip out 45 degrees
Capable Of:
  • 4" x 6" , 7", 8" , 9", 10", 11", 12" sampling core barrel
  • Handling 10 ft tooling & 5 ft tooling
  • Casing sizes up to 12” in diameter
  • Breaking tool joints up to 12” in diameter
  • 1" to 8" well install
  • Vapour probe installs
  • Deep settlement gauges
  • Slope inclinometers
  • Multi port wells
  • Anchors
  • CPT Testing
  • Electric piezometers
  • Shelby sampling
  • Vane testing
  • DCPT Testing
  • Chemical injection
Technical Specs:
Maximum Drilling Depth: 250 ft
Torque: Torque (high torque/low speed) 4,000 ft-lbs / Torque (low torque/high speed) 2,500 ft-lbs
Pull Back: 20,000 lbf
Pull Down: 20,000 lbf

Height:
  • With Tower Up: 285 in / 23.75 ft
  • With Tower Down: 118 in / 9.8 ft

Length:
  • With Tower Unfolded Up: 118 in / 9.83 ft
  • With Tower Folded Down: 298 in / 24.83 ft

Width: 81 in / 7 ft
Weight: 22,900lb

M5D Track Drill Rig

Omega Environmental Drilling’s M5D Driller Rubber Track Rig has been custom built for access in low overhead and limited access drilling. It is compact yet powerful enough for difficult drilling in shallow to intermediate boreholes.  With rubber a tracked carrier it is highly maneuverable, easy to operate, and efficient.

The auger rig is a most popular rig for environmental and geotechnical and construction investigations. It is cost effective and fast drilling in suitable formations and is the preferred method for clay like formations. It is a cleaner method of drilling as there are no drilling fluids needed for solid and hollow stem augers





Equipped With:
  • Solid & hollow stem augers
  • Wireless remote control
  • Rubber track low ground pressure
  • Isuzu engine tier 3
  • SPT / DCPT Automatic Hammer
  • 100 gallon water tank
  • Moyno pump
  • Dual emergency shut off
  • Pressure washer/decontamination unt
Capable Of:
  • 1" to 3" well installs
  • Slope inclinometers
  • Multi port wells
  • Electric piezometers
  • DCPT testing
  • CPT Testing
  • Shelby tubes
  • SPT testing
  • Vane testing
  • Grouting
  • Anchors
Technical Specs:
Maximum Drilling Depth: 30 m / 100 ft (depending on soil conditions)
Torque: 5000 ft-lbs
Pull Back: 14,000 lbs
Pull Down: 10,600 lbs

Height:
  • With Tower Up: 146 inches/12.17 ft
  • With Tower Down: 98 inches/8.17 ft
  • With Tower Extended: 233 inches/19.42 ft

Length:
  • Overall Length: 193 inches/17.7 ft
  • Length of Machine Body: 175 inches/14.7 ft
  • Length of Overhang: 18 inches/1.6 ft

Width: 78 inches/6.5 ft
Weight: 13,000 lbs

B54 4×4 Truck Auger Drill

The Mobile Drill B54 is a workhorse for coring, environmental, geotechnical, infrastructure, and marine applications. The B54 features a 13 ft feed stroke and is angle-drilling capable with 24,000 lbs of retract & 16,000 lbs of pulldown. It boasts two rotary head options: 10-Speed – max. 897 rpm & max. 8,400 ft-lb torque and 2-Speed – 0-79 rpm @ 3,600 ft-lb torque.

Equipped With:
  • Mounted on a 4x4 truck
  • Solid & hollow stem augers
  • SPT / DCPT Automatic Hammer
  • HQ and NQ coring
  • Mud rotary
  • Air rotary (ODEX)
  • Moyno pump
  • Dual emergency shut off
  • Pressure washer / decontamination unit
  • Centerline mono mud pump
  • Hydraulic jaws
Capable Of:
  • 1" to 3" well installs
  • SLope inclinometers
  • Multi port wells
  • Electric piezometers
  • DCPT testing
  • CPT testing
  • Shelby tubes
  • SPT testing
  • Vane testing
  • Grouting
  • Anchors
Technical Specs:
Maximum Drilling Depth: 300 ft
Torque: 10-Speed – max. 897 rpm & max. 8,400 ft-lb torque and 2-Speed – 0-79 rpm @ 3,600 ft-lb torque
Pull Back: 24,000 lbs
Pull Down: 16,000 lbs

Height:
  • With Tower Up: 31 feet

Limited Access Drill

A portable auger drill powerful enough for the most demanding jobs, small enough to get to them.  Hydraulically powered rotary top head drive. Air swivel equipped for use with Ring Bit and ODEX systems.  Drill can be operated attached to the main power unit or remotely with hose extensions.

Our Limited Access Drill Rig lets you drill in areas where a full size truck can’t reach.

With a height of less than 8′ tall, drilling can be performed indoors while keeping the power unit outside and eliminating all indoor emissions. This rig is extremely versatile, giving us the ability to drill in almost any indoor space or over objects preventing larger rigs access.

Our Limited Access Drill can fit through spaces as narrow as 24″ wide, and operate up to 100′ away from the skid steer/power source.

Perfect for Odex, Auger, SPT, or Agricultural Soil Sample work.

Equipped With:
  • Auger, ODEX and SPT
  • Fits under an 8' ceiling
  • Fits through as small as 24" doorway
  • 6" diameter solid stem auger
  • 8" diameter hollow stem auger
Technical Specs:
Maximum Drilling Depth: 50 ft
Torque: 2,750 ft-lbs @ 3000psi
Pull Back: 7,350 lbs
Pull Down: 5,600 lbs

Width: Fits through 24” doorway
Weight: 950 lbs
